Cumas suas le 16 Crann Grúda Soghluaiste Aonair Tonna
- May 03, 2018 -

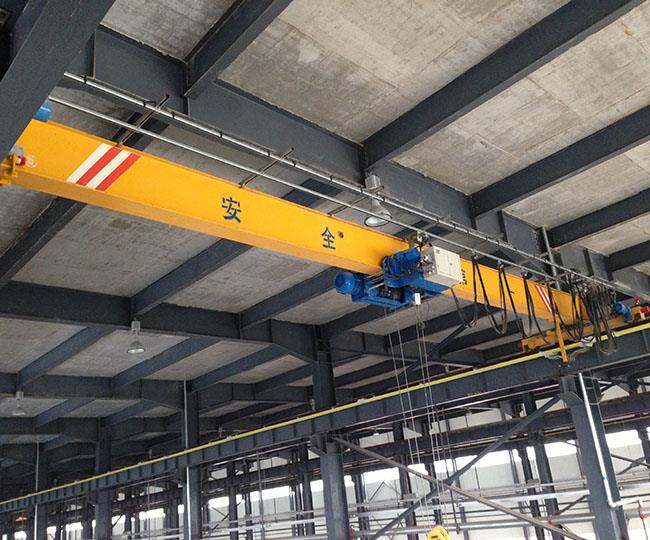

Eolas Bunúsach timg.jpg


Ainm: Cumas suas le 16 Crann Grúda Soghluaiste Aonair Tonna

Samhail NÍL: LD

Airde ardaithe: suas le 20m

Grúpa Dualgas: A3-A5

Modh Rialaithe: Pendant / Sreang

Iarratas: Úsáid Tógála, Úsáid Ceardlann, Úsáid Limistéar Mianraí

Cineál Sling: Wire Rope

Foinse Cumhachta: Leictreach

Cineál Gluaiseacht: Roth

Suiteáil: Le chéile

Cineál Crann Túr: Crane Taistil Oscailte

Pacáiste Iompair: Bosca adhmaid

Sonraíocht: Cumas: 2-10T, Span: 5-30M

Origin: Henan, An tSín


Cur síos ar an Táirge


Cuid 1: Tuairisc

De ghnáth, is éard atá i gcraenacha lastuas giorra aon chineál LD ná tógáil giorra amháin. Is féidir iad seo a thógáil le bíomaí cruach nó le cineál giorra bosca táthú níos déine. Tá Craenacha Grúpaí Aonair níos gnách nuair a bhíonn cumas níos airde acu ná 20T. Úsáidtear craenacha Oscailte Aonair LD Aonair go forleathan inár réimse tionsclaíoch. Déantar é a chur i bhfeidhm ag gléasra cruach, Gléasra Hydropower, Warehouse, Ceardlann, Líne Táirgthe, Siopa Cothabhála, Iompar Ábhar, Siopa Tionól Trealamh etc. Tá trealamh caighdeánach cuimsitheach agus raon leathan gabhálais againn chun freastal ar riachtanais aonair.


Cuid 2: Cumraíocht Mionsonraithe:

1 Meicníocht ardaithe
- Taistil téad sreang Monorail nó taistil slabhra mar rogha: luas aistrithe: aon nó dé mar is gá
- Luas Tralaí: Aonair nó Dual nó Céim níos lú de réir mar is gá
- Ardfheidhmíocht leis an bpraghas is eacnamaíoch

Carráistí 2-Deireadh
- cineál iompair de bhosca táthaithe
- Dearadh Modula
mótair cage iora nó mótar tosaigh bog mar rogha
- Luas taistil: Aonair nó Dual nó Céim níos lú de réir mar is gá

3-Main Girder
- Bosca táthaithe dian Giorra nó alt cruach dhosmálta
- Dearadh Modula
- Déanta as cruach Q235 nó Q345
- Design Deflection≤1 / 750 span

4-Rialú
-téan-rialaithe neamhspleách rialaithe taistil feadh C-rian
-or rialú gan sreang mar rogha
-or rialú cábáin mar rogha

Cuid 5-Leictreach
-Soláthar cumhachta ionaid (mar rogha)
-Tá na painéil rialaithe IP54 nó IP44 ag brath ar chomhshaol oibre.
-Tá na comhpháirteanna suite ar bhealach cothabhála cairdiúil, agus soláthraíonn an leagan amach iomlán le dea-chosaint
-Beidh cáblaí fíocháin ar fionraí ar dholllaibí cábla, a shocraítear ar thralaithe cábla, agus iad ag rith i gcarr C galbhánnaithe.
-An chuid leictreacha i branda Schneider nó Siemens

6-Péintéireacht
-corrosion cosanta trí bhaint meirge trí ghlanadh meicniúil SA 2.5
-Céad sraith de 30 miocrón epocsa sciath
-Ciseal sciath de 30 miocrón epocsa sciath
-Ar sraith sciath de pholaireatán 40 miocrón
-Tiús tiomána: thart ar 100 miocrón
-Color: buí nó Orange de réir na gceanglas

Cosaint 7-Sábháilte
-Teath-chumhacht lasc
- cosaint a bhaint as
cosaint órga
taisteal taistil agus cosaint taistil fhada
cosaint taistil a aistriú
- Cosaint mhótarfheithiclí

Cuid 3: Sonraí Sceitseála agus Teicniúla


Cumas (t) réimse (m) meáchan iomlán (G) ualach roth uasta (kN) ualach roth min (kN) H1 H2 H3 W B C1 C2
1 7.5 1.67 8.9 3.9 490 910 550 2000 2500 796 1274
8 1.72 9.1 4.0
8.5 1.77 9.2 4.1
9 1.81 9.4 4.3
9.5 1.86 9.5 4.4
10 1.91 9.7 4.5
10.5 1.96 9.8 4.6
11 1.95 9.8 4.6
11.5 2.00 10.0 4.7
12 2.05 10.1 4.8
12.5 2.09 10.2 4.9
13 2.14 10.4 5.0
13.5 2.19 10.5 5.2
14 2.24 10.6 5.3
14.5 2.43 11.1 5.8 955 595 2500 3000
15 2.48 11.3 5.9
15.5 2.53 11.4 6.0
16 2.58 11.5 6.1
16.5 2.63 11.7 6.3
17 2.66 11.7 6.3
17.5 2.85 12.2 6.8 530 970 650
18 2.90 12.4 6.9
18.5 2.96 12.5 7.1
19 3.01 12.7 7.2
19.5 3.02 12.7 7.2
20 3.20 13.1 7.7 580 700 3000 3500
20.5 3.26 13.3 7.8
21 3.32 13.4 8.0
21.5 3.37 13.6 8.1
22 3.43 13.7 8.2
22.5 3.49 13.9 8.4
23 4.07 15.3 9.8 660 990 800 3500 4000
23.5 4.13 15.5 10.0
24 4.20 15.7 10.2
24.5 4.26 15.8 10.3
25 4.32 16.0 10.5
25.5 4.39 16.2 10.6
26 5.35 18.6 13.0 745 1010 900 4000 4500
26.5 5.43 18.8 13.2
27 5.52 19.0 13.5
27.5 5.60 19.2 13.7
28 5.68 19.4 13.9
28.5 5.76 19.6 14.1
Cumas (t) réimse (m) meáchan iomlán (G) ualach roth uasta (kN) ualach roth min (kN) H1 H2 H3 W B C1 C2
2 7.5 1.79 13.8 4.1 490 1080 550 2000 2500 871 1274
8 1.84 14.0 4.2
8.5 1.88 14.1 4.3
9 1.93 14.3 4.4
9.5 1.98 14.5 4.5
10 2.03 14.7 4.6
10.5 2.07 14.8 4.7
11 2.12 15.0 4.8
11.5 2.25 15.4 5.1 1125 595
12 2.30 15.5 5.3
12.5 2.35 15.7 5.4
13 2.40 15.8 5.5
13.5 2.45 16.0 5.6
14 2.50 16.1 5.8
14.5 2.62 16.5 6.1 580 1140 700 2500 3000
15 2.68 16.6 6.2
15.5 2.74 16.8 6.3
16 2.79 17.0 6.5
16.5 2.85 17.1 6.6
17 2.91 17.3 6.8
17.5 3.23 18.1 7.6 660 1160 800
18 3.30 18.3 7.7
18.5 3.36 18.5 7.9
19 3.42 18.6 8.0
19.5 3.49 18.8 8.2
20 4.09 20.3 9.7 785 1135 900 3000 3500
20.5 4.17 20.5 9.9
21 4.24 20.7 10.1
21.5 4.32 20.9 10.3
22 4.40 21.1 10.5
22.5 4.47 21.3 10.7
23 5.31 23.4 12.7 820 1200 1000 3500 4000
23.5 5.40 23.7 13.0
24 5.49 23.9 13.2
24.5 5.57 24.1 13.4
25 5.66 24.3 13.6
25.5 5.75 24.6 13.8
26 6.40 26.2 15.5 875 1250 1100 4000 4500
26.5 6.50 26.5 15.7
27 6.60 26.7 16.0
27.5 6.69 27.0 16.2
28 6.79 27.2 16.4
28.5 6.89 27.5 16.7
Cumas (t) réimse (m) meáchan iomlán (G) ualach roth uasta (kN) ualach roth min (kN) H1 H2 H3 W B C1 C2
3 7.5 1.93 18.9 4.2 530 1255 650 2000 2500 818.5 1291
8 1.98 19.1 4.3
8.5 2.03 19.4 4.4
9 2.09 19.6 4.5
9.5 2.14 19.8 4.7
10 2.20 20.0 4.8
10.5 2.25 20.2 4.9
11 2.31 20.4 5.0
11.5 2.41 20.7 5.3 580 700
12 2.47 20.9 5.4
12.5 2.53 21.1 5.6
13 2.59 21.3 5.7
13.5 2.64 21.5 5.9
14 2.70 21.7 6.0
14.5 3.02 22.5 6.8 660 1275 800 2500 3000
15 3.08 22.7 6.9
15.5 3.14 22.9 7.1
16 3.21 23.1 7.2
16.5 3.27 23.2 7.4
17 3.34 23.4 7.6
17.5 3.84 24.7 8.8 745 1290 900
18 3.91 24.9 9.0
18.5 3.99 25.1 9.2
19 4.06 25.3 9.4
19.5 4.14 25.5 9.6
20 4.92 27.5 11.5 820 1315 1100 3000 3500
20.5 5.01 27.7 11.7
21 5.09 28.0 11.9
21.5 5.18 28.2 12.2
22 5.27 28.4 12.4
22.5 5.36 28.7 12.6
23 5.71 29.6 13.5 875 1360 3500 4000
23.5 5.80 29.8 13.7
24 5.89 30.0 13.9
24.5 5.99 30.3 14.2
25 6.08 30.5 14.4
25.5 6.17 30.8 14.6
26 7.97 35.3 19.1 925 1660 1200 4000 4500
26.5 8.09 35.6 19.4
27 8.22 35.9 19.7
27.5 8.34 36.2 20.0
28 8.46 36.6 20.3
28.5 8.59 36.9 20.7
Cumas (t) réimse (m) meáchan iomlán (G) ualach roth uasta (kN) ualach roth min (kN) H1 H2 H3 W B C1 C2
5 7.5 2.20 28.7 4.6 580 1460 720 2000 2500 841.5 1310
8 2.27 29.0 4.7
8.5 2.33 29.3 4.9
9 2.40 29.7 5.0
9.5 2.46 30.0 5.2
10 2.53 30.2 5.3
10.5 2.59 30.5 5.5
11 2.66 30.8 5.6
11.5 2.91 31.5 6.3 660 800
12 2.98 31.8 6.4
12.5 3.05 32.0 6.6
13 3.12 32.3 6.8
13.5 3.20 32.5 6.9
14 3.27 32.8 7.1
14.5 3.52 33.5 7.7 745 1540 900 2500 3000
15 3.60 33.7 7.9
15.5 3.68 33.9 8.1
16 3.75 34.2 8.3
16.5 3.83 34.4 8.5
17 3.90 34.6 8.7
17.5 4.41 35.9 9.9 820 1500 1000
18 4.50 36.2 10.2
18.5 4.59 36.5 10.4
19 4.68 36.7 10.6
19.5 4.76 37.0 10.8
20 5.23 38.2 12.0 875 1545 1100 3000 3500
20.5 5.33 38.4 12.2
21 5.42 38.7 12.4
21.5 5.51 38.9 12.7
22 5.60 39.2 12.9
22.5 5.70 39.5 13.1
23 7.08 42.9 16.6 925 1595 1200 3500 4000
23.5 7.20 43.2 16.9
24 7.32 43.6 17.2
24.5 7.43 43.9 17.4
25 7.55 44.2 17.7
25.5 7.67 44.5 18.0
26 9.01 47.9 21.4 1015 1670 1300 4000 4500
26.5 9.16 48.3 21.7
27 9.30 48.6 22.1
27.5 9.44 49.0 22.5
28 9.58 49.4 22.8
28.5 9.72 49.7 23.2
Cumas (t) réimse (m) meáchan iomlán (G) ualach roth uasta (kN) ualach roth min (kN) H1 H2 H3 W B C1 C2
10 7.5 3.26 51.3 6.1 720 1850 900 2000 2500 1293 1893
8 3.34 52.1 6.3
8.5 3.43 52.9 6.5
9 3.51 53.5 6.6
9.5 3.59 54.2 6.8
10 3.67 54.8 7.0
10.5 3.76 55.3 7.2
11 3.84 55.8 7.3
11.5 4.05 56.6 7.9 820 1850 1000
12 4.14 57.1 8.1
12.5 4.22 57.6 8.3
13 4.31 58.0 8.5
13.5 4.40 58.4 8.7
14 4.49 58.8 8.9
14.5 4.80 59.8 9.6 875 1900 1100 2500 3000
15 4.89 60.2 9.8
15.5 4.98 60.6 10.1
16 5.07 60.9 10.3
16.5 5.17 61.3 10.5
17 5.26 61.7 10.7
17.5 5.53 62.5 11.4 1940 1140
18 5.63 62.8 11.6
18.5 5.73 63.2 11.9
19 5.83 63.5 12.1
19.5 5.92 63.9 12.3
20 6.89 66.4 14.8 925 2000 1250 3000 3500
20.5 7.01 66.8 15.0
21 7.12 67.1 15.3
21.5 7.24 67.5 15.6
22 7.36 67.9 15.9
22.5 7.48 68.2 16.2
23 8.96 72 19.9 1100 1920 1350 3500 4000
23.5 9.11 72.5 20.3
24 9.26 72.9 20.6
24.5 9.41 73.3 21.0
25 9.56 73.8 21.4
25.5 9.71 74.2 21.7
26 13.09 82.7 30.2 1200 1450 4000 4700
26.5 13.29 83.3 30.7
27 13.48 83.8 31.2
27.5 13.67 84.3 31.6
28 13.86 84.8 32.1
28.5 14.05 85.4 32.6
Cumas (t) réimse (m) meáchan iomlán (G) ualach roth uasta (kN) ualach roth min (kN) H1 H2 H3 W B C1 C2
16 7.5 3.64 77.2 7.0 820 2480 1000 2000 2500 1293 1893
8 3.74 78.3 7.2
8.5 3.84 79.4 7.4
9 3.94 80.4 7.6
9.5 4.04 81.3 7.9
10 4.14 82.1 8.1
10.5 4.24 82.9 8.3
11 4.34 83.6 8.5
11.5 4.55 84.6 9.0 875 2525 1100
12 4.66 85.2 9.3
12.5 4.76 85.9 9.5
13 4.87 86.5 9.8
13.5 4.97 87.1 10.0
14 5.08 87.6 10.3
14.5 5.93 90.0 12.4 975 1200 2500 3000
15 6.06 90.6 12.7
15.5 6.18 91.1 13.0
16 6.31 91.7 13.3
16.5 6.43 92.2 13.6
17 6.56 92.7 13.9
17.5 7.19 94.5 15.5 1075 1300
18 7.33 95.0 15.8
18.5 7.47 95.5 16.1
19 7.61 96.0 16.5
19.5 7.75 96.5 16.8
20 8.56 98.7 18.9 1130 2570 1400 3000 3500
20.5 8.72 99.2 19.2
21 8.87 99.7 19.6
21.5 9.03 100.2 20.0
22 9.18 100.8 20.4
22.5 9.34 101.3 20.8
23 12.41 109.0 28.4 1280 1550 3500 4000
23.5 12.61 109.6 28.9
24 12.81 110.2 29.4
24.5 13.02 110.9 30.0
25 13.22 111.5 30.5
25.5 13.43 112.0 31.0
26 14.34 114.4 33.2 1300 2600 1600 4000 4700
26.5 14.55 115.0 33.8
27 14.77 115.6 34.3
27.5 14.98 116.3 34.8
28 15.20 116.9 35.4
28.5 15.42 117.5 35.9
Cumas (t) réimse (m) meáchan iomlán (G) ualach roth uasta (kN) ualach roth min (kN) H1 H2 H3 W B C1 C2
20 7.5 5.45 97.9 10.2 900 2450 1050 2000 2700 1394 1933
8 5.58 99.5 10.5
8.5 5.70 101.0 10.7
9 5.83 102.3 11.0
9.5 5.96 103.5 11.3
10 6.09 104.6 11.6
10.5 6.22 105.7 11.8
11 6.35 106.6 12.1
11.5 6.99 108.8 13.7 970 2480 1150
12 7.15 109.8 14.0
12.5 7.30 110.7 14.4
13 7.45 111.5 14.7
13.5 7.60 112.3 15.1
14 7.76 113.1 15.5
14.5 8.67 115.8 17.7 1050 2530 1280 2500 3200
15 8.85 116.6 18.1
15.5 9.02 117.3 18.6
16 9.20 118.1 19.0
16.5 9.37 118.8 19.4
17 9.55 119.5 19.8
17.5 10.50 122.2 22.2 1130 2560 1390
18 10.70 122.9 22.7
18.5 10.89 123.6 23.1
19 11.09 124.3 23.6
19.5 11.28 125.0 24.1
20 12.02 127.0 25.9 1200 2600 1500 3000 3700
20.5 12.23 127.7 26.4
21 12.44 128.4 26.9
21.5 12.64 129.1 27.4
22 12.85 129.8 27.9
22.5 12.96 130.5 28.5
23 13.88 132.7 30.5 1300 1600 3500 4200
23.5 14.10 133.4 31.0
24 14.31 134.0 31.6
24.5 14.52 134.78 32.1
25 14.74 135.4 32.6
25.5 14.96 135.6 33.1
